PRODUCT FILTER

General Information

Full product code CYSF45C/M
Light source color 2700K-6000K
Light source replaceable Yes
Driver included Yes
Optical cover/lens type No
Protection class IEC Safety class I
Certificate CE, UL, DLC, GS, CB
Net Weight (Piece) 3.300 kg

Operating and Electrical

Input Voltage 100 to 277 V
Input Frequency 50 to 60 Hz

Controls and Dimming

Dimmable DALI, 0/1-10V

Mechanical and Housing

Dimension Width 109mm, length 1200mm, height 86mm
Housing Material PC
Diffuser Material PC
Heat sink Aluminium

Approval and Application

Ingress protection code IP66
Mech. impact protection code IK10

Performance (IEC Compliant)

luminous flux 5000 lm
LED luminaire efficacy 110lm/W
Color Temperature 4000 K
Color Rendering Index ≥80
Input power 45W
Median useful life L80B10 50000 h

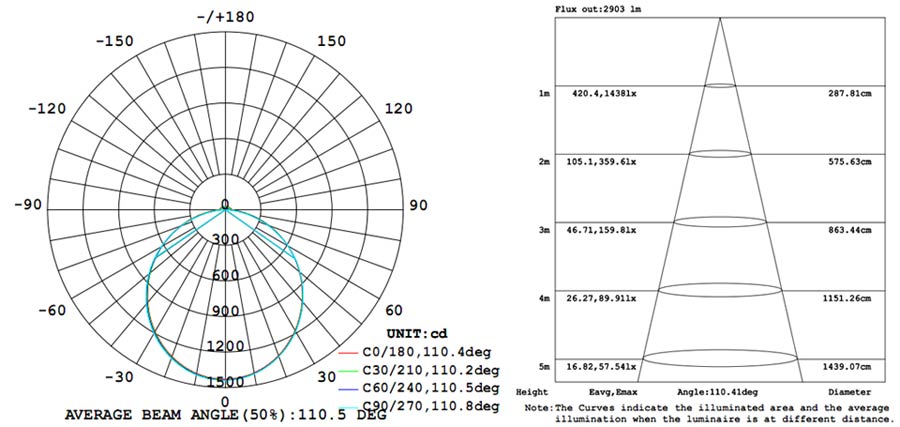

Photometrics
