Product family information

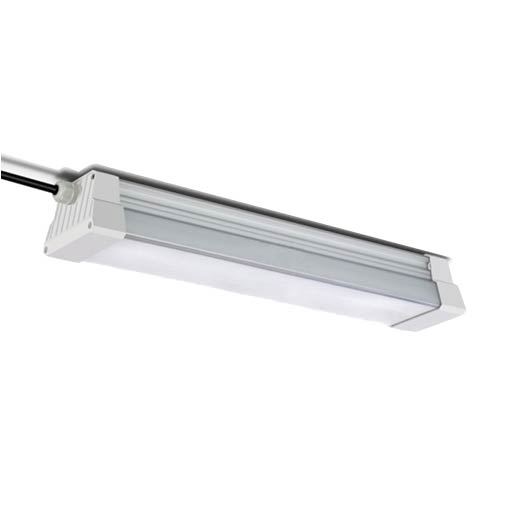

The CYSF series tri-proof light are with aluminium body and impact-resistent PC housing. Ingress-protected to a level of IP66, this is a competitive energy-saving solution for wet spaces. With durable construction and long-lasting electrical components CYSF lights are quite energy saving and provide long life span which especially suitable for harsh ambient. The design allows multiple luminaires to be connected in a line arrangement. A flexible ceiling clip facilitates easy installation and maintenance.

Features

  • Can be used to replace traditional waterproof luminaires ranging from 18 to 58 W TL-D
  • Easy to install and maintain
  • Wide-beam light distribution
  • IP66 for wet location

Applications

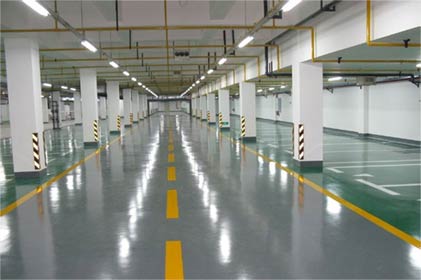

  • Parking garages
  • Warehouses
  • Food processing

Product family details

Type CYSF
Light source LED
Power (steady state in W, +/- 10%) 20W/45W/60W
Beam angle 109º
Luminous flux 2500-7000 lm (depending on configuration)
Correlated Color Temperature 2700K-6500K
Color Rendering Index 80
Median useful life L80B10 50,000 hours
Operating temperature range -20 to +40°C
Driver Built-in
Mains voltage 100-277V
Material Housing: aluminium
End caps: PC (polycarbonate)
Diffuser PC (polycarbonate)
Installation surface, wall mount
suspending

CYSF20C/M

CYSF45C/M

CYSF60C/M
