Product family information

Corelens series LED panel light are with steel body and PC LED lens. It provides excellent visual comfort and glare reduction. This range of products can be used to replace functional luminaires in general lighting applications. Can be easily mounted in ceilings with exposed T-bar and concealed T-bar, as well as plaster ceilings. It also available in surface version and suspending version. Corelens LED Recessed luminaires represents an excellent deal for those looking for pleasant and efficient lighting

Features

  • Can be used to replace traditional T5 louver fixture, 65% energy saving
  • Easy to install and maintain
  • Available in different shapes and sizes
  • Advantage for use with sensors /emergency battery pack

Applications

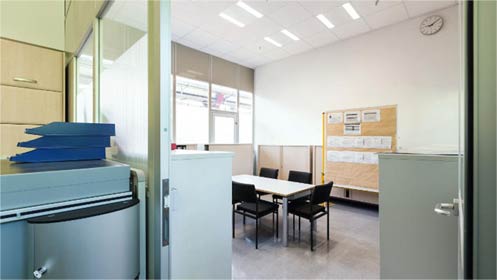

  • Office
  • Healthcare
  • Other indoor applications

Product family details

Type CYXP
Ceiling type T-bar ceiling and plasterboard ceiling
Ceiling grid Module size in length: 600 mm
Light source replaceable LED module
Power (+/-10%) 30W/36W/45W
Beam angle 73º
Luminous flux 3900-7800 lm
Correlated Color Temperature 2700-6000 K
Color Rendering Index > 80
Median useful life L80B10 50,000 hours
Average ambient temperature +25 ºC
Operating temperature range +10 to +40ºC
Driver Built-in
Mains voltage 230 or 240 V / 50-60 Hz
Material Housing: zinc-coated steel
Optical cover: PC lens
Color White(RAL9016)
Connection Push-in connector
Installation Individual; lay-in in exposed ceiling grids
suspending
surface

CYCP30T-840EU-GM

CYCP36T-840EU-GM

CYCP45T-840EU-GM

CYCP60T-840EU-GM
