General Information

Full product code CYCP36T-840EU-GM
Light source color 2700K-6000K
Light source replaceable Yes
Driver included Yes
Optical cover/lens type No
Protection class IEC Safety class I
Certificate CE
Net Weight (Piece) 4.200 kg

Operating and Electrical

Input Voltage 220 to 240 V
Input Frequency 50 to 60 Hz

Controls and Dimming

Dimmable DALI, 0/1-10V

Mechanical and Housing

Dimension Width 600mm, length 600mm ( size can be customized)
Housing Material Zinc-coated steel
Diffuser Material PC lens

Approval and Application

Ingress protection code IP20
Mech. impact protection code IK02

Performance (IEC Compliant)

luminous flux 4700 lm
LED luminaire efficacy 130lm/W
Color Temperature 4000 K
Color Rendering Index ≥80
Input power 36W
Median useful life L80B10 50,000 hours

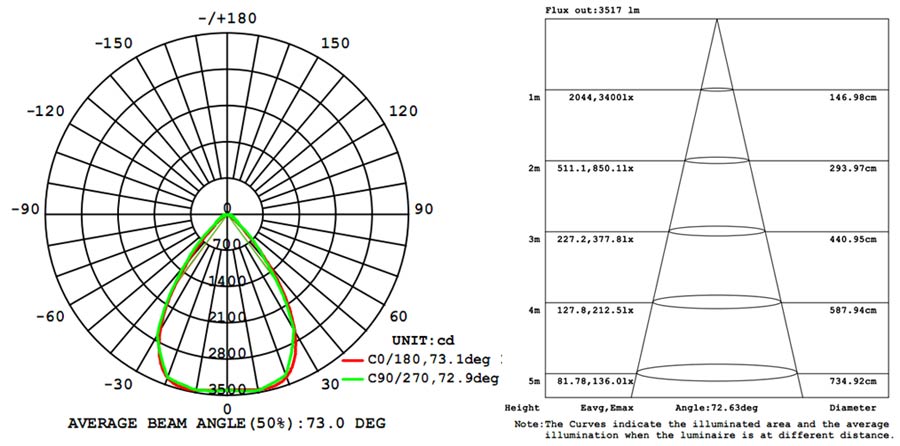

Photometrics
