General Information

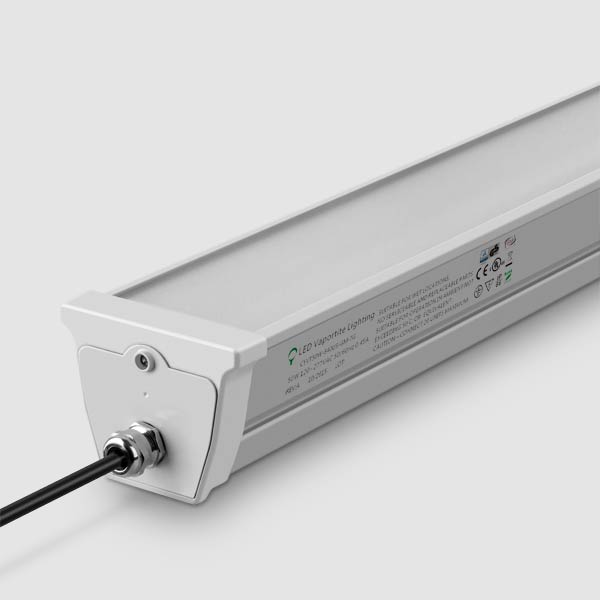

Full product code CYVT50W-840EU-GM
Light source color 4000K
Light source replaceable Yes
Driver/power unit/transformer Power supply unit with DALI interface
Driver included Yes
Optical cover/lens type No
Protection class IEC Safety class I
Certificate CE, UL, DLC, GS, CB
Net Weight (Piece) 3.200 kg

Operating and Electrical

Input Voltage 220 to 240 V
Input Frequency 50 to 60 Hz

Controls and Dimming

Dimmable DALI, 0/1-10V, sensor dimming

Mechanical and Housing

Dimension Width 112mm, length 1275mm, height 89mm
Housing Material Galvanized sheet steel
Diffuser Material Tempered glass/PC/PMMA
Heat sink Aluminium

Approval and Application

Ingress protection code IP66
Mech. impact protection code IK08

Performance (IEC Compliant)

luminous flux 6200 lm
LED luminaire efficacy 125lm/W
Color Temperature 4000 K
Color Rendering Index ≥80
Input power 50W
Median useful life L80B10 50000 h

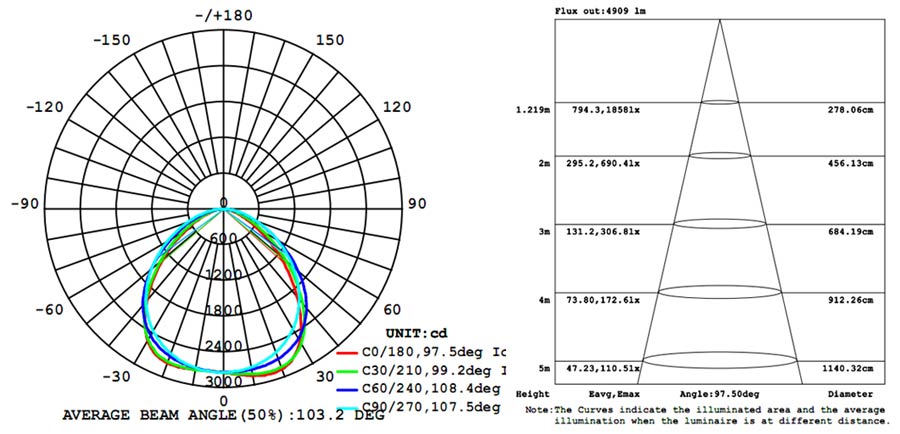

Photometrics
