General Information

Full product code CYWP36M
Light source color 2700K-6000K
Light source replaceable Yes
Driver included Yes
Optical cover/lens type No
Protection class IEC Safety class I
Certificate CE, UL, DLC, GS, CB
Net Weight (Piece) 3.200 kg

Operating and Electrical

Input Voltage 220 to 240 V
Input Frequency 50 to 60 Hz

Controls and Dimming

Dimmable DALI, 0/1-10V

Mechanical and Housing

Dimension Width 67mm, length 1200mm, height 58mm
Housing Material PC
Diffuser Material PC
Heat sink Aluminium

Approval and Application

Ingress protection code IP65
Mech. impact protection code IK05

Performance (IEC Compliant)

luminous flux 3600 lm
LED luminaire efficacy 100lm/W
Color Temperature 4000 K
Color Rendering Index ≥80
Input power 36W
Median useful life L80B10 35000 h

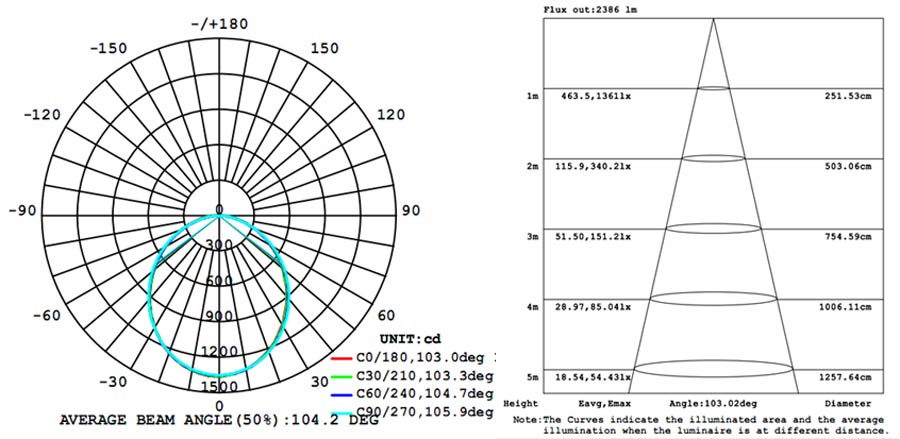

Photometrics
