General Information
| Full product code | CYVT60W-840EU-GM |
| Light source color | 4000K |
| Light source replaceable | Yes |
| Driver/power unit/transformer | Power supply unit with DALI interface |
| Driver included | Yes |
| Optical cover/lens type | No |
| Protection class IEC | Safety class I |
| Certificate | CE, UL, DLC, GS, CB |
| Net Weight (Piece) | 4.800 kg |
Operating and Electrical
| Input Voltage | 220 to 240 V |
| Input Frequency | 50 to 60 Hz |
Controls and Dimming
| Dimmable | DALI, 0/1-10V, sensor dimming |
Mechanical and Housing
| Dimension | Width 112mm, length 1490mm, height 89mm |
| Housing Material | Galvanized sheet steel |
| Diffuser Material | Tempered glass/PC/PMMA |
| Heat sink | Aluminium |
Approval and Application
| Ingress protection code | IP66 |
| Mech. impact protection code | IK08 |
Performance (IEC Compliant)
| luminous flux | 7500 lm |
| LED luminaire efficacy | 125lm/W |
| Color Temperature | 4000 K |
| Color Rendering Index | ≥80 |
| Input power | 60W |
| Median useful life L80B10 | 50000 h |

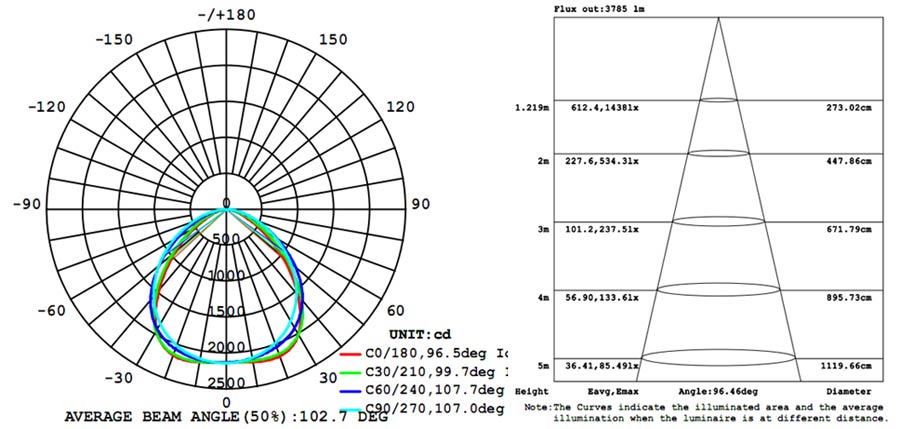

Photometrics
