Product family information

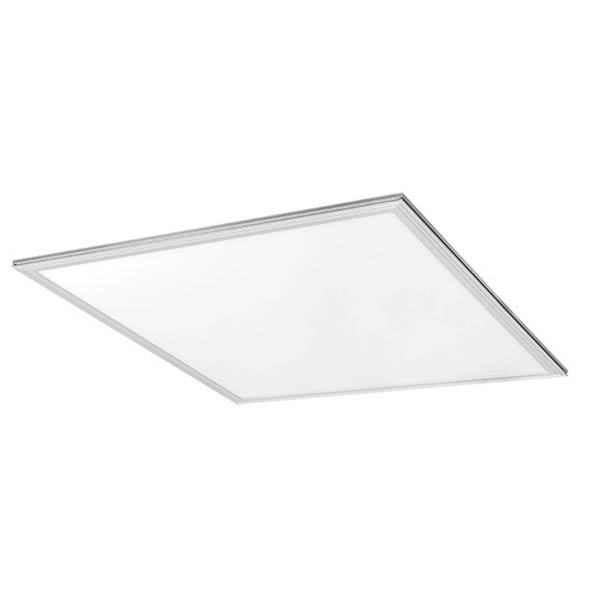

CYPL Panel is a LED-based luminaire with slim shape that delivers a uniform surface of light – a truly attractive proposition. Suitable for recessed and suspended mounting, the range offers a choice of sizes, color temperatures and DALI dimming. In addition, it comes with all the benefits of LED technology: long-lasting and energy-efficient. Corelens series LED panel light are with aluminium and PC cover

Features

  • Can be used to replace traditional T5 louver fixture, 40% energy saving
  • Easy to install and maintain
  • Available in different shapes and sizes

Applications

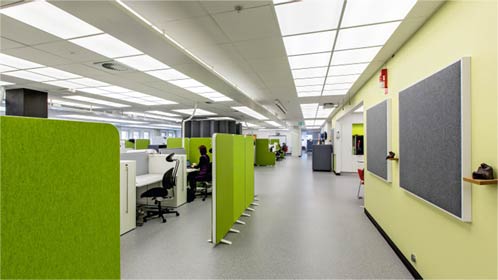

  • Office
  • Healthcare
  • Retail

Product family details

Type CYPL
Ceiling type T-bar ceiling
Ceiling grid Module size in length: 600 mm
Light source Non-replaceable LED module
Power (+/-10%) 30W/36W/40W/60W
Beam angle 112º
Luminous flux 2700-5400 lm
Correlated Color Temperature 2700-6000 K
Color Rendering Index > 80
Median useful life L70B50 35,000 hours
Average ambient temperature +25 ºC
Operating temperature range +10 to +40ºC
Driver Built-in
Mains voltage 230 or 240 V / 50-60 Hz
Material Housing: zinc-coated steel
Optical cover: PC lens
Color White(RAL9016)
Connection Push-in connector
Installation lay-in in exposed ceiling grids, no brackets needed;
suspended mounting with a set of four single steel-wire suspensions

CYPL6060

CYPL12030
